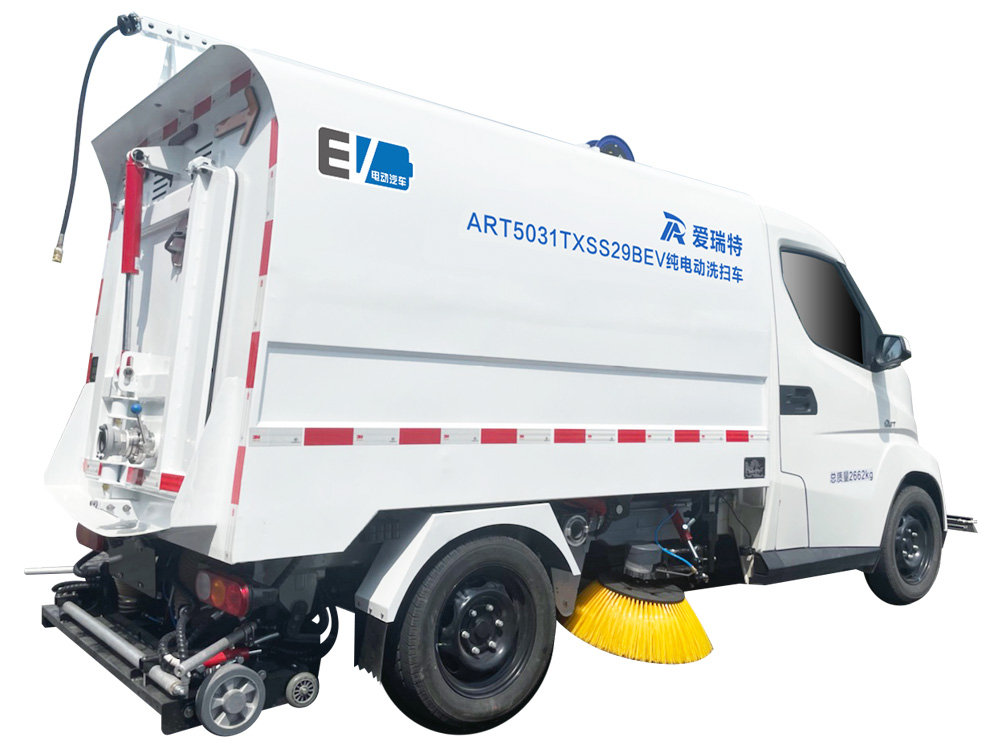

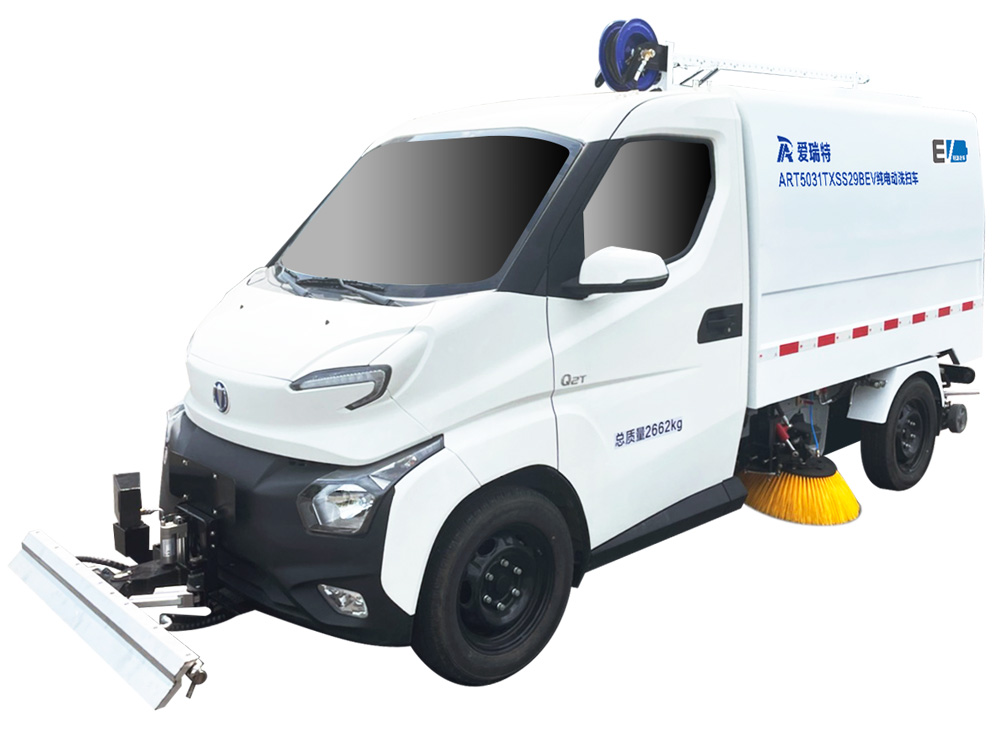

Art5031txss29bev pure electric cleaning and sweeping vehicle is mainly used for general sweeping of main roads, non motorized lanes, back streets and alleys. It integrates functions such as sweeping and high-pressure washing, and can quickly clean fallen leaves, stones, sand dust, white garbage, etc., and dump garbage.
Box: carbon steel welding, corrugated structure, 304 stainless steel garbage can, reliable quality and good sealing;
Sweeping system: the sweeping disc and spray bar have the functions of automatic avoidance and automatic recovery in case of obstacles. The central sweeping disc (two sweeping discs can be controlled separately) + the central V-shaped spraying frame + the central double suction port structure. The operation modes include "full cleaning" and "full sweeping". The effect is good, and the cleaning rate reaches 98%.
Cleaning system: AR high-pressure water pump and 307v7.5kw DC motor cooperate with hand-held spray gun, which has the function of cleaning and removing small advertisements in non motorized lanes and streets. At the same time, it has the function of multi angle point flushing, and can flush garbage cans without getting off the vehicle
Front flushing mechanism (optional): optional front flushing mechanism, with road surface flushing, fixed-point flushing and other road maintenance functions, one vehicle can be used for multiple purposes, saving costs
Dustbin self-cleaning: the dustbin is equipped with a self-cleaning spray rod, which is threaded in the dustbin, and the spray angle can be adjusted. The nozzle is easy to replace.
Safety electronic control: the whole vehicle adopts can bus control technology, has intelligent fault diagnosis function, and is equipped with intelligent monitoring terminal, which can provide real-time monitoring of vehicle operation status and intelligent services.
Protection grade: the battery protection grade reaches IP68 to ensure the safety of the whole vehicle.
Retractable flushing pipe: equipped with retractable high-pressure pipe, pull out the high-pressure pipe to flush the garbage under the roadside vehicles onto the horse, and then the vehicles clean the garbage to solve the difficult problems of urban cleaning.
Serial number | Entry name | Company | Parameter |
1 | Chassis model / brand | / | UFO 1032BEV/UFO card |
2 | Total mass | kg | 2662 |
3 | curb weight | kg | 2340 |
4 | wheelbase | mm | 2870 |
5 | Approach angle / departure angle | ° | 24/10 |
6 | Battery brand | / | Ningde times (lithium iron phosphate) |
7 | Battery capacity | kWh | 41.86度（334.88V/125Ah） |
8 | Endurance mileage | km | 285（Working condition method） |
9 | Maximum speed | km/h | 90 |
10 | Maximum climbing gradient | % | 20 |
11 | Minimum turning radius | m | 5 |
12 | High pressure pump flow | L/min | 30 |
13 | High pressure pump pressure | Mpa | 0~15 |
14 | Rated power of water pump | kw | 7.5 |
15 | Front flushing width | m | ≥1.5（Optional） |
16 | ★Volume of garbage can | m3 | 1.2 |
17 | Volume of clean water tank | m3 | 1.08 |
18 | Dimensions | mm | 4500*1640*2100 4930*1640*2100（Optional forward stroke） |
